Product info

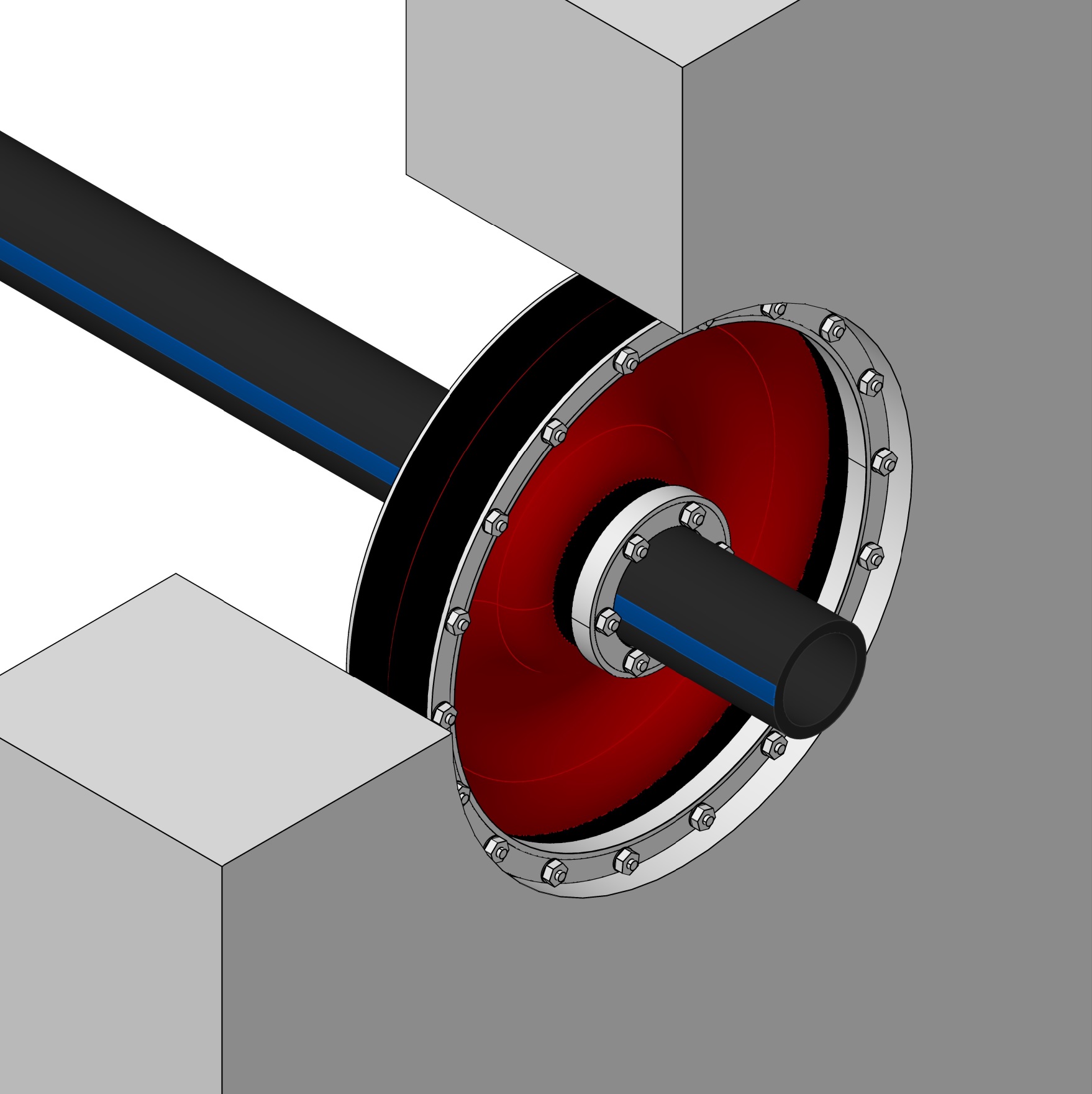

Hydrocord™ UKP Seismo is designed for sealing moving penetrations of pipes and communications. First of all, it is possible to use it in seismically active areas (more than 6 points), as well as with significant yields of the building foundation of buildings and structures during transverse shear of pipe penetrations.
Besides, the scope of such products is the sealing of penetrations near vibration-loaded equipment, where a significant vibration load is transmitted to the pipe.
Download
Application
Hydrocord™ UKP Seismo seal is used for sealing and waterproofing penetrations of sewerage, water supply, heat supply and other networks through the enclosing structures of buildings (usually through monolithic or prefabricated reinforced concrete walls and ceilings), in conditions of increased seismic activity.
The principle of seal operation is the expansion of the sealing element (rubber core), under the action of the compressive force of the pressure steel plates when tightening the bolts that unite the structure.
Advantages
- Proven water resistance up to 5 bar;
- Not a rigid seal for pipes;
- Corresponds to SP 14.13330.2018;
- Elastic sealing at a distance of more than 100mm between the pipe and the hole;
- It can be used in case of significant yields of the building foundation and transverse movements of pipes relative to walls;
- Can be used near vibro-loaded equipment;
- Works in different directions and when turning the pipe relative to the wall;
- Installation does not depend on ambient temperature;
- Instrumental quality control (Dynamometric wrench);
- Gas and waterproof;
- Fast installation;
- Can be made to order for any size and modification;
- Modification for contact with oils and oil products (made of oil and petrol resistant rubber) is possible;
- Application in contact with potable water is possible (modification with food rubber);
- Modification with an extended operating temperature range (from -60°C to + 200°C) made of silicone caoutchouc is possible.
HIGH COMPACTION RATE
Annular space seals create a high degree of seal (up to 5 bar) between the pipe and the hole, which allows you to reliably seal pipe penetrations.
RELIABILITY
The annular space seals are made of high quality materials (such as S304 stainless steel, EPDM rubber), which ensures a high degree of durability.
INSTRUMENTAL QUALITY CONTROL
The annular space seals are mounted using a torque wrench, which ensures instrumental quality control and achievement of the required seal in Nm.
EASY INSTALLATION
The annular space seals are easily and quickly installed in the structure. Seasonality does not matter, they can be installed even in frost.
